PIE new iPod interface UNI-iPD/V precedence shipping into Japanese market

Shipping at the end of January 2009
Compatible with the current all iPods
PIE new iPod interface UNI-iPD/V precedence shipping into Japanese market
Now start reservation

iPod touch classic Nano ALL MODEL Music, video and charge corresponding interface

Compatible with the video out for the all current iPods
(touch,classic,and nano)
Using the updated "Apple"IC,it allows to work video out for the new iPods.
You can enjoy the video library from the new iPods.

Composite video output for connection to OEM or aftermarket video compatible unit.

Incorporates patented Crystal-Line audio circuitry for crystal clear sound.

Adjustable audio (RCA)level output to allow level matching with any aftermarket or OEM audio system.

Option to keep cherging voltage on for 20 minutes after ignition is turned off.

iPods pauses and plays according to accessory position.

SPR YEN 10,500 (not including the Tax and installation Fee)

Note: The UNI-iPD/V does not have capability to comtrol any of the iPod function.

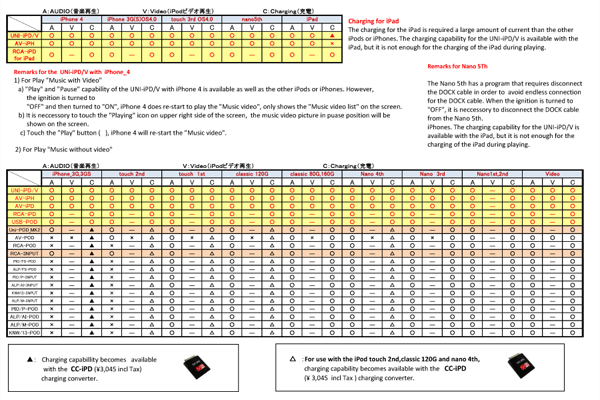

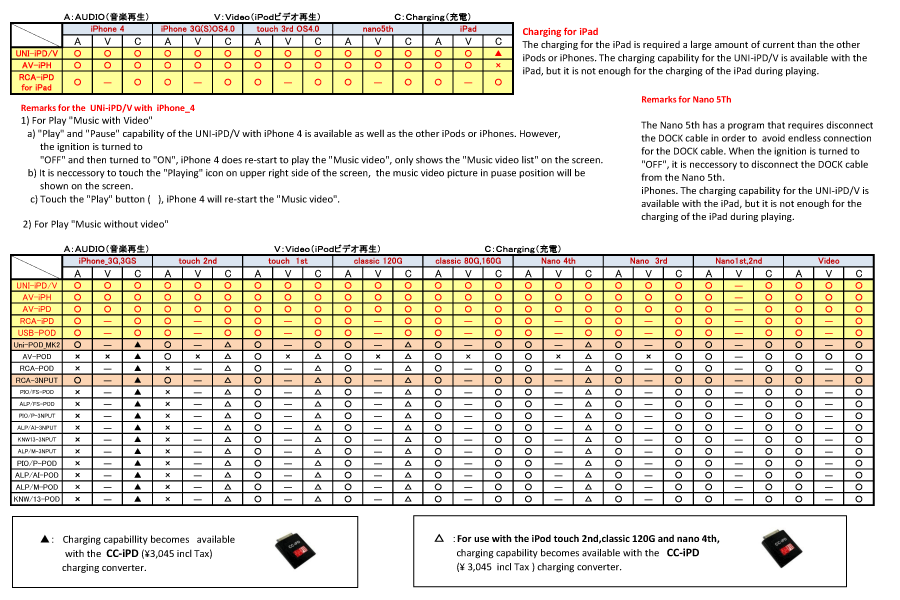

Compatible with

iPhone_3G / touch(all) / classic(all) / nano(all) / video / mini / color / G4

	Compatible with the video output for the current iPods(touch,classic and Nano all) The UNI-iPD/V is compatible with the updated IC chips of the "Apple" and allows to play the video of the current iPods. Single connection to iPods for audio and video.

	Adjustable audio (RCA)level output to allow level matching with any aftermarket or OEM auxiliary input. The volume level was very "Low" when the portable audio unit was connected with the OEM or aftermarket AUX input port, or the volume level became extreme "Loud" when the mode of the head unit was changed to CD or radio. Have you been experienced such trouble? The UNI-iPD/V avoid such trouble adjusting the audio level output of the portable audio units. You will be experienced a distortion for output from the iPods since an universal Dock to RCA interface cable has not an adjustment capability for the iPods output level. The UNI-iPD/V will avoid this trouble.

	Single connection to iPod for charging Cherges the your iPods at 5 volts when iPods pay music,and has an option to keep charging on for 20 minutes and stop after ignition is turned off.

	RCA level output with composite video for any aftermarket or OEM AUX input and video port. Direct output from the Crystal circuitry keep the lowest level for power decline. Note:OEM or aftermarket head units has to have an Auxiliary input port.

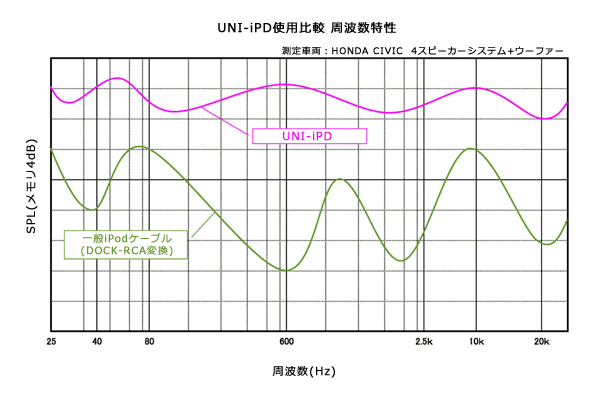

	Incorporates patended Crystal-Line audio circuitry for crystal clear sound The Crystal-Line audio circuirty provides a clear and pure sound without any decline of the sudio signal.

	iPod pauses and plays according to accessory position. iPod pauses when the iginition turned off,and will play when the ignition turned on.

Pause and Play function according to accessory position

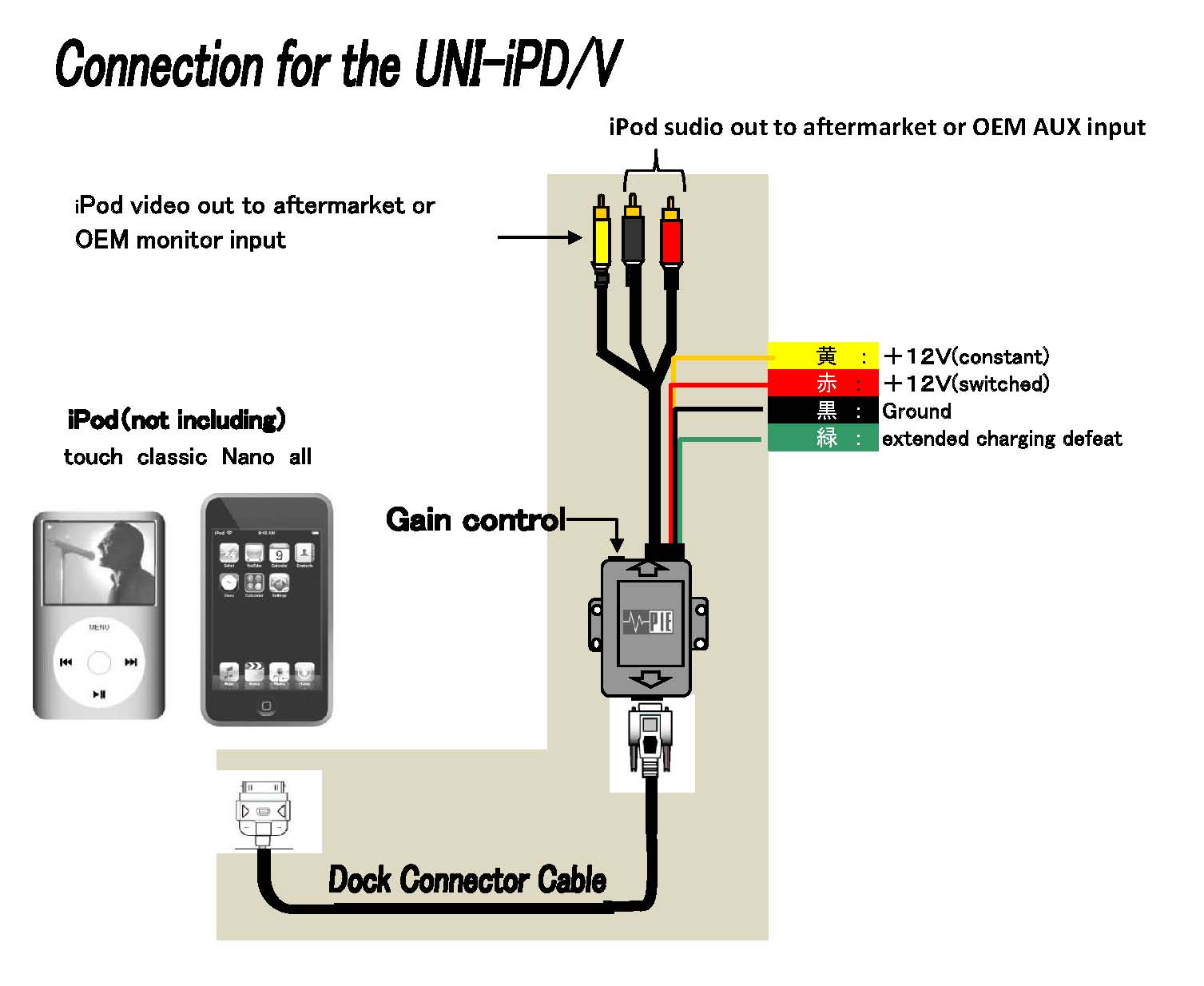

iPod will pause after (3) seconds from the ignition turned off, and will shut down the power itself after two(2) minutes from keeping pause position. (Note:In case of iPod touch, it will pause but not shut down the power since it has not a such capability. It will be done by only ON/OFF switch) This function will be available according to the connecting option for the green wire. If choose charging on for 20 minutes, iPod pauses when charging stop.If you hope to play music continiously, should be choose an option according to accessory position. iPod will play when the ignition turned on.

Note:	The UNI-iPD/V does not have the capability to control any of the iPod functions.

Note:	Acceptable with 12V only.

Note:	iPod should not be installed where hinder from driving.

Note:	Warranty does not apply to any unit that has been modified or used in a manner contrary to its intended purpose.

Video Guide
